This is an advanced tutorial for the Nicegui widgets. For beginners and intermediate users this tutorial might be too complex - still there might be valuable information in it.


Before starting the tutorial, it's important to ensure the following prerequisites are met:

These prerequisites are essential for effectively following the tutorial and understanding the implementation of the ConferenceCorpus project.


Windows logo and wordmark - (1985-1989).svg

If you use Windows you might be out of luck for quite a few scripts and tools being mentioned here. For best results you might want to install an environment that is capable of handling these scripts and tools such as a Docker or the Windows Subsystem for Linux WSL. See e.g. Ubuntu in WSL for more details.


Mac OS wordmark logo.svg Life's good on MacOS. It's better using Homebrew and or MacPorts.


Linux Logo No worries - she'll be right.

Example Usecase

This tutorial uses the ConferenceCorpus as it's usecase. As part of my research for the ConfIDent Project i am gathering metadata for scientific events from different datasources. There has been a lack of a proper frontend for the past few years although there have been several attempts to create a webserver and RESTFul services e.g. with

As of 2023-11 the project is now migrated to nicegui using the nicegui widgets (demo)

The github ticket for the migration is Issue 58 - refactor to use nicegui

Setting up the project

The project is on github see ConferenceCorpus


A GitHub README is a document that introduces and explains a project hosted on GitHub, providing essential information such as its purpose, how to install and use it, and its features. It is important because it serves as the first point of contact for anyone encountering the project, helping them understand what the project is about and how to engage with it.

The README consists of

  • header
  • badges
  • link to demo
  • example API calls
  • links to documentation
  • authors list

README screenshot as of start of migration



The LICENSE file in a software project specifies the legal terms under which the software can be used, modified, and shared, defining the rights and restrictions for users and developers. Using the Apache License is a good choice for many projects because it is a permissive open-source license that allows for broad freedom in use and distribution, while also providing legal protection against patent claims and requiring preservation of copyright notices.




pyproject.toml is a configuration file used in Python projects to define project metadata, dependencies, and build system requirements, providing a consistent and standardized way to configure Python projects. For more information, see pyproject.toml documentation.

Hatchling is a popular choice for a build system because it offers a modern, fast, and straightforward approach to building and managing Python projects, aligning well with the standardized structure provided by pyproject.toml. Learn more about Hatchling at Hatchling on GitHub.

This pyproject.toml file configures the Python project 'ConferenceCorpus', an API for accessing academic events and event series from different sources.

Build System

The [build-system] section defines the build requirements and backend. It specifies the use of 'hatchling' as the build backend:

requires = ["hatchling"]
build-backend = ""

Hatchling is a modern build backend for Python projects, aligning with PEP 517.

Project Metadata

Under the [project] section, several key details about the project are listed:

name = "ConferenceCorpus"
description = "python api providing access to academic events and event series from different sources"
home-page = ""
readme = ""
license = {text = "Apache-2.0"}
authors = [{name = "Wolfgang Fahl", email = ""}]
maintainers = [{name = "Wolfgang Fahl", email = ""}]
requires-python = ">=3.9"
classifiers = ['Programming Language :: Python', ...]
dynamic = ["version"]

This section sets the project's name, description, homepage, README, license, authors, maintainers, required Python version, classifiers, and dynamic versioning.


The dependencies section lists the required external libraries for the project to function:

dependencies = [

These dependencies ensure that the necessary packages are installed for the project.

Project Scripts

The [project.scripts] section defines executable commands for various functionalities, with a focus on the `ccServer` script for starting the web server:

ccServer = "corpus.web.cc_cmd:main"

Understanding the ccServer Script

  • Command: ccServer is the command that users will run in the terminal.
  • Function: The value "corpus.web.cc_cmd:main" specifies the Python function that gets executed when `ccServer` is invoked.
    • Package and Module: The first part, corpus.web.cc_cmd, is the Python package and module where the function resides.
    • Function Name: The second part, main, is the name of the function within that module.


- To start the webserver, a user would execute the following command in the terminal:

 $ ccServer

- This command calls the `main` function from the `` file located in the `corpus.web` package, effectively initiating the web server for the ConferenceCorpus project.

Project URLs

The [project.urls] section provides links to the project's home, source, and documentation:

Home = ""
Source = ""
Documentation = ""

These URLs direct users to relevant resources for the project.

Command line

Thanks to niceguiwidget's WebserverCmd base class a command line startup python script only needs a few lines:

Created on 2023-09-10

@author: wf
import sys
from ngwidgets.cmd import WebserverCmd
from corpus.web.cc_webserver import ConferenceCorpusWebserver
class ConferenceCorpusCmd(WebserverCmd):
    command line handling for Conference Corpus Webserver
def main(argv:list=None):
    main call
    return exit_code
if __name__ == "__main__":
    if DEBUG:


ccServer -h
usage: ccServer [-h] [-a] [-c] [-d] [--debugServer DEBUGSERVER]
                [--debugPort DEBUGPORT] [--debugRemotePath DEBUGREMOTEPATH]
                [--debugLocalPath DEBUGLOCALPATH] [-l] [-i INPUT] [-rol]
                [--host HOST] [--port PORT] [-s] [-V]

Conference Corpus Volume browser

  -h, --help            show this help message and exit
  -a, --about           show about info [default: False]
  -c, --client          start client [default: False]
  -d, --debug           show debug info [default: False]
  --debugServer DEBUGSERVER
                        remote debug Server
  --debugPort DEBUGPORT
                        remote debug Port
  --debugRemotePath DEBUGREMOTEPATH
                        remote debug Server path mapping - remotePath - path
                        on debug server
  --debugLocalPath DEBUGLOCALPATH
                        remote debug Server path mapping - localPath - path on
                        machine where python runs
  -l, --local           run with local file system access [default: False]
  -i INPUT, --input INPUT
                        input file
  -rol, --render_on_load
                        render on load [default: False]
  --host HOST           the host to serve / listen from [default: localhost]
  --port PORT           the port to serve from [default: 5005]
  -s, --serve           start webserver [default: False]
  -V, --version         show program's version number and exit


Install using pip

We use pip to install

pip install .

Install using scripts/install

There is also a bash script in scripts/install (which we'll later user in our github CI)


Minimum Webserver code

Thanks to niceguiwidget's InputWebserver base class a the cc_webserver module only needs a few lines:

Created on 2023-11-18

@author: wf
from ngwidgets.input_webserver import InputWebserver
from ngwidgets.webserver import WebserverConfig
from corpus.version import Version

class ConferenceCorpusWebserver(InputWebserver):
    Webserver for the Conference Corpus
    def get_config(cls) -> WebserverConfig:
        get the configuration for this Webserver
        copy_right = "(c)2020-2023 Wolfgang Fahl"
        config = WebserverConfig(
            copy_right=copy_right, version=Version(), default_port=5005
        return config
    def __init__(self):
        InputWebserver.__init__(self, config=ConferenceCorpusWebserver.get_config())

Starting the webserver from the commandline

ccServer -s -c

will start your webserver and open a browser to access it. The default port is 5005 and therefore the link http://localhost:5005 should allow you test the results.

ccServer -s --host port=80

Will make the server the default webserver on your intranet and http://<your-hostname> will allow you to access your server.

Default layout and menu

The default menu looks like this:

Ngwidgets default header.jpg

And the default footer like this: Default ngwidgets footer.jpg

Homepage content

For this tutorial consider DataSource to be just and example - we only show the title here anyway so you could do something like data_sources=["A","B","C"] to tryout the principle in your own application.

The core idea here is that setup_content_div will accept an asynchronous or normal function as a parameter and then call that to get the ui elements for your pages. This way the layout of all pages can be the same - just the content changes.

 def setup_home(self):
        first load all data sources then
        show a table of these
        msg="loading datasources ..."
        msg=f"{len(data_sources)} datasources loaded in {elapsed*1000:5.0f} msecs"
        for index,source in enumerate(data_sources,start=1):
    async def home(self, _client: Client):
        provide the main content page

Adding a RESTFul service


Issue 59 - refactor eventseries RESTFul service to nicegui/FastAPI


Note how we separate the concerns and have function to get the eventSeries as a dict of list of dicts and then a conversion to the different formats that is going to be used by the Webserver to provide the results in a RESTFul way.

import io
import re
import pandas as pd
from dataclasses import dataclass, asdict
from fastapi import Response
from fastapi.responses import JSONResponse,FileResponse
from tabulate import tabulate
from typing import List
from spreadsheet.spreadsheet import ExcelDocument
from corpus.lookup import CorpusLookup

from corpus.datasources.openresearch import OREvent, OREventSeries
from corpus.eventseriescompletion import EventSeriesCompletion

class EventSeriesAPI():
    API service for event series data

    def __init__(self,lookup:CorpusLookup):
        construct me


    def getEventSeries(self,name: str,bks:str=None,reduce:bool=False):
        Query multiple datasources for the given event series

            name(str): the name of the event series to be queried
        multiQuery = "select * from {event}"
        idQuery = f"""select source,eventId from event where lookupAcronym LIKE "{name} %" order by year desc"""
        dictOfLod = self.lookup.getDictOfLod4MultiQuery(multiQuery, idQuery)
        if bks:
            allowedBks = bks.split(",") if bks else None
            self.filterForBk(dictOfLod.get("tibkat"), allowedBks)
        if reduce:
            for source in ["tibkat", "dblp"]:
                sourceRecords = dictOfLod.get(source)
                if sourceRecords:
                    reducedRecords = EventSeriesCompletion.filterDuplicatesByTitle(sourceRecords)
                    dictOfLod[source] = reducedRecords
        return dictOfLod

    def filterForBk(self,lod:List[dict], allowedBks:List[str]):
        Filters the given dict to only include the records with their bk in the given list of allowed bks
            lod: list of records to filter
            allowedBks: list of allowed bks
        if lod is None or allowedBks is None:
        mainclassBk = set()
        subclassBk = set()
        allowNullValue = False
        for bk in allowedBks:
            if bk.isnumeric():
            elif re.fullmatch(r"\d{1,2}\.\d{2}", bk):
            elif bk.lower() == "null" or bk.lower() == "none":
                allowNullValue = True
        def filterBk(record:dict) -> bool:
            keepRecord: bool = False
            bks = record.get("bk")
            if bks is not None:
                bks = set(bks.split("⇹"))
                recordMainclasses = {bk.split(".")[0] for bk in bks}
                if mainclassBk.intersection(recordMainclasses) or subclassBk.intersection(bks):
                    keepRecord = True
            elif bks is None and allowNullValue:
                keepRecord = True
            return keepRecord
        lod[:] = [record for record in lod if filterBk(record)]

    def generateSeriesSpreadsheet(self, name:str, dictOfLods: dict) -> ExcelDocument:

            name(str): name of the series
            dictOfLods: records of the series from different sources

        spreadsheet = ExcelDocument(name=name)
        # Add completed event sheet and add proceedings sheet
        eventHeader = [
            "Start date",
            "End date",
        proceedingsHeaders = ["item", "label", "ordinal", "ordinalStr", "description", "Title", "Acronym",
                              "OpenLibraryId", "oclcId", "isbn13", "ppnId", "gndId", "dblpId", "doi", "Event",
        eventRecords = []
        for lod in dictOfLods.values():
        completedBlankEvent = EventSeriesCompletion.getCompletedBlankSeries(eventRecords)
        eventSheetRecords = []
        proceedingsRecords = []
        for year, ordinal in completedBlankEvent:
            eventSheetRecords.append({**{k: None for k in eventHeader}, "Ordinal": ordinal, "Year": year})
            proceedingsRecords.append({**{k: None for k in proceedingsHeaders}, "ordinal": ordinal})
        if not eventSheetRecords:
            eventSheetRecords = [{k: None for k in eventHeader}]
            proceedingsRecords = [{k: None for k in proceedingsHeaders}]
        spreadsheet.addTable("Event", eventSheetRecords)
        spreadsheet.addTable("Proceedings", proceedingsRecords)
        for lods in [dictOfLods, asdict(MetadataMappings())]:
            for sheetName, lod in lods.items():
                if isinstance(lod, list):
                    lod.sort(key=lambda record: 0 if record.get('year',0) is None else record.get('year',0))
                spreadsheet.addTable(sheetName, lod)
        return spreadsheet

    async def convertToRequestedFormat(self, name: str, dictOfLods: dict, markup_format: str = "json"):
        Converts the given dicts of lods to the requested markup format.
        Supported formats: json, html, excel, pd_excel, various tabulate formats.
        Default format: json

            dictOfLods: data to be converted

        if markup_format.lower() == "excel":
            # Custom Excel spreadsheet generation
            spreadsheet = self.generateSeriesSpreadsheet(name, dictOfLods)
            spreadsheet_io = io.BytesIO(spreadsheet.toBytesIO().getvalue())  # Ensure it's a BytesIO object
            return FileResponse(spreadsheet_io, media_type="application/", filename=f"{name}.xlsx")

        elif markup_format.lower() == "pd_excel":
            # Pandas style Excel spreadsheet generation
            df = pd.DataFrame.from_dict({k: v for lod in dictOfLods.values() for k, v in lod.items()})
            excel_io = io.BytesIO()
            with pd.ExcelWriter(excel_io, engine="xlsxwriter") as writer:
                df.to_excel(writer, sheet_name=name)
            return FileResponse(excel_io, media_type="application/", filename=f"{name}.xlsx")

        elif markup_format.lower() == "json":
            # Direct JSON response
            return JSONResponse(content=dictOfLods)

            # Using tabulate for other formats (including HTML)
            tabulated_content = tabulate([lod for lod in dictOfLods.values()], headers="keys", tablefmt=markup_format)
            media_type = "text/plain" if markup_format.lower() != "html" else "text/html"
            return Response(content=tabulated_content, media_type=media_type)

class MetadataMappings:
    Spreadsheet metadata mappings
    WikidataMapping: list = None
    SmwMapping: list = None

    def __init__(self):
        self.WikidataMapping = [
             {'Entity': 'Event series', 'Column':None, 'PropertyName': 'instanceof', 'PropertyId': 'P31', 'Value': 'Q47258130'},
             {'Entity': 'Event series', 'Column': 'Acronym', 'PropertyName': 'short name', 'PropertyId': 'P1813', 'Type': 'text'},
             {'Entity': 'Event series', 'Column': 'Title', 'PropertyName': 'title', 'PropertyId': 'P1476', 'Type': 'text'},
             {'Entity': 'Event series', 'Column': 'Homepage', 'PropertyName': 'official website', 'PropertyId': 'P856', 'Type': 'url'},
             {'Entity': 'Event', 'Column':None, 'PropertyName': 'instanceof', 'PropertyId': 'P31', 'Value': 'Q2020153'},
             {'Entity': 'Event', 'Column': 'Series', 'PropertyName': 'part of the series', 'PropertyId': 'P179'},
             {'Entity': 'Event', 'Column': 'Ordinal', 'PropertyName': 'series ordinal', 'PropertyId': 'P1545', 'Type': 'string', 'Qualifier': 'part of the series'},
             {'Entity': 'Event', 'Column': 'Acronym', 'PropertyName': 'short name', 'PropertyId': 'P1813', 'Type': 'text'},
             {'Entity': 'Event', 'Column': 'Title', 'PropertyName': 'title', 'PropertyId': 'P1476', 'Type': 'text'},
             {'Entity': 'Event', 'Column': 'Country', 'PropertyName': 'country', 'PropertyId': 'P17', 'Lookup': 'Q3624078'},
             {'Entity': 'Event', 'Column': 'City', 'PropertyName': 'location', 'PropertyId': 'P276', 'Lookup': 'Q515'},
             {'Entity': 'Event', 'Column': 'Start date', 'PropertyName': 'start time', 'PropertyId': 'P580', 'Type': 'date'},
             {'Entity': 'Event', 'Column': 'End date', 'PropertyName': 'end time', 'PropertyId': 'P582', 'Type': 'date'},
             {'Entity': 'Event', 'Column': 'gndId', 'PropertyName': 'GND ID', 'PropertyId': 'P227', 'Type': 'extid'},
             {'Entity': 'Event', 'Column': 'dblpUrl', 'PropertyName': 'describedAt', 'PropertyId': 'P973', 'Type': 'url'},
             {'Entity': 'Event', 'Column': 'Homepage', 'PropertyName': 'official website', 'PropertyId': 'P856', 'Type': 'url'},
             {'Entity': 'Event', 'Column': 'wikicfpId', 'PropertyName': 'WikiCFP event ID', 'PropertyId': 'P5124', 'Type': 'extid'},
             {'Entity': 'Event', 'Column': 'dblpId', 'PropertyName': 'DBLP event ID', 'PropertyId': 'P10692', 'Type': 'extid'},
             {'Entity': 'Proceedings', 'Column':None, 'PropertyName': 'instanceof', 'PropertyId': 'P31', 'Value': 'Q1143604'},
             {'Entity': 'Proceedings', 'Column': 'Acronym', 'PropertyName': 'short name', 'PropertyId': 'P1813', 'Type': 'text'},
             {'Entity': 'Proceedings', 'Column': 'Title', 'PropertyName': 'title', 'PropertyId': 'P1476', 'Type': 'text'},
             {'Entity': 'Proceedings', 'Column': 'OpenLibraryId', 'PropertyName': 'Open Library ID', 'PropertyId': 'P648', 'Type': 'extid'},
             {'Entity': 'Proceedings', 'Column': 'ppnId', 'PropertyName': 'K10plus PPN ID', 'PropertyId': 'P6721', 'Type': 'extid'},
             {'Entity': 'Proceedings', 'Column': 'Event', 'PropertyName': 'is proceedings from', 'PropertyId': 'P4745', 'Lookup': 'Q2020153'},
             {'Entity': 'Proceedings', 'Column': 'publishedIn', 'PropertyName': 'published in', 'PropertyId': 'P1433', 'Lookup': 'Q39725049'},
             {'Entity': 'Proceedings', 'Column': 'oclcId', 'PropertyName': 'OCLC work ID','PropertyId': 'P5331', 'Type': 'extid'},
             {'Entity': 'Proceedings', 'Column': 'isbn13', 'PropertyName': 'ISBN-13', 'PropertyId': 'P212', 'Type': 'extid'},
             {'Entity': 'Proceedings', 'Column': 'doi', 'PropertyName': 'DOI', 'PropertyId': 'P356', 'Type': 'extid'},
             {'Entity': 'Proceedings', 'Column': 'dblpId', 'PropertyName': 'DBLP event ID', 'PropertyId': 'P10692', 'Type': 'extid'},

        self.SmwMapping = [
               "TemplateParam": r.get("templateParam")
               } for r in OREvent.propertyLookupList
            *[{"Entity": "Event series",
               "Column": r.get("templateParam"),
               "PropertyName": r.get("name"),
               "PropertyId": r.get("prop"),
               "TemplateParam": r.get("templateParam")
               } for r in OREventSeries.propertyLookupList
Routing of service

see also

        def get_eventseries(name: str, bks: str = "", reduce: bool = False, format: str = "json"):
            # Use the parameters directly in the API calls
            event_series_dict = self.event_series_api.getEventSeries(name, bks, reduce)
            response = self.event_series_api.convertToRequestedFormat(name, event_series_dict, format)
            return response
Unit test for service
Created on 19.11.2023

@author: wf
from corpus.web.cc_webserver import ConferenceCorpusWebserver
from corpus.web.cc_cmd import WebserverCmd
from ngwidgets.webserver_test import WebserverTest
import json

class RestFulApiTest(WebserverTest):
    test the conference corpus RESTFul APIs
    def setUp(self, debug=False, profile=True):
        WebserverTest.setUp(self, server_class, cmd_class, debug=debug, profile=profile)
    def test_event_series_api(self):
        Test getting event series information from the API.

        This test method sends a GET request to the `/eventseries/{name}` endpoint
        to retrieve data about a specific event series. The test verifies that the
        response is a valid JSON object and checks its structure and contents as needed.

        The specific event series tested here is identified by the acronym "AISI".
            ("AISI",['confref', 'gnd', 'wikicfp', 'tibkat', 'wikidata'],21)
        for name,expected_sources,expected_event_count in test_series:
            path = f"/eventseries/{name}"
            json_dict = self.get_json(path)
            if debug:
                print("JSON Response:\n", json_str)
                print(f"Sources: {sources}")
            for source,events in json_dict.items():
                if debug:
                    print(f"    {source}:{len(events)}")
            if debug:
                print(f"Event Count: {event_count}")
    def test_event_series_api_formats(self):
        test different markup formats
        for name,needle in test_series:
            for markup_format in ["github"]:
                if debug:
test result of unittest
scripts/test --venv -tn test_restful_apis

Test for event_series_api

import json
from dataclasses import asdict

from spreadsheet.googlesheet import GoogleSheet

from corpus.web.eventseries import MetadataMappings, EventSeriesAPI
from tests.datasourcetoolbox import DataSourceTest
from corpus.lookup import CorpusLookup

class TestEventSeriesAPI(DataSourceTest):
    tests EventSeriesBlueprint
    def setUpClass(cls)->None:
        super(TestEventSeriesAPI, cls).setUpClass()
    def setUp(self, debug=False, profile=True, timeLimitPerTest=10.0):
        DataSourceTest.setUp(self, debug=debug, profile=profile, timeLimitPerTest=timeLimitPerTest)
    def testLookup(self):
        check the lookup
        self.assertTrue(self.lookup is not None)
        if debug:
            print(f"found {datasource_count} datasources")
    def test_extractWikidataMapping(self):
        extracts wikidata metadata mapping from given google docs url
        url = ""
        gs = GoogleSheet(url)["Wikidata"])
        if debug:
            print(f"found {len(lod)} events")
        #sheet = [{k:v for k,v in record.items() if (not k.startswith("Unnamed")) and v is not ''} for record in ]

    def test_MetadataMapping(self):
        test the metadata mapping
        mapping = MetadataMappings()
        if debug:
        self.assertTrue("WikidataMapping" in mapping_dict)
    def testGetEventSeries(self):
        tests the multiquerying of event series over api

        some 17 secs for test
        if debug:
        self.assertTrue("confref" in dict_of_lods)
        self.assertTrue(len(dict_of_lods["confref"]) > 15)

    def test_getEventSeriesBkFilter(self):
        tests getEventSeries bk filter
        bks_list = ["85.20", "54.65,54.84", "54.84,85"]
        for bks in bks_list:
            res=es_api.getEventSeries(name="WEBIST", bks=bks)
            self.assertIn("tibkat", res)
            bksPerRecord = [record.get("bk") for record in res.get("tibkat")]
            expectedBks = set(bks.split(","))
            for rawBks in bksPerRecord:
                bks = set(rawBks.split("⇹"))
                bks = bks.union({bk.split(".")[0] for bk in bks})

    def test_filterForBk(self):
        tests filterForBk
        testMatrix = [
            (['54.84⇹85.20', '54.84⇹85.20', '54.84⇹81.68⇹85.20⇹88.03⇹54.65', '85.20'], ["54"], 3),
            (['54.84⇹85.20', '54.84⇹85.20', '54.84⇹81.68⇹85.20⇹88.03⇹54.65', '85.20'], ["54","85"], 4),
            (['54.84⇹85.20', '54.84⇹85.20', '54.84⇹81.68⇹85.20⇹88.03⇹54.65', '85.20'], ["85.20"], 4),
            (['54.84⇹85.20', '54.84⇹85.20', '54.84⇹81.68⇹85.20⇹88.03⇹54.65', '85.20'], ["02"], 0),
            (['54.84⇹85.20', '54.84⇹85.20', '54.84⇹81.68⇹85.20⇹88.03⇹54.65', '85.20'], ["81.68","88.03"], 1),
            (['54.84⇹85.20', '54.84⇹85.20', None, '85.20'], ["54"], 2),
            (['54.84⇹85.20', '54.84⇹85.20', None, '85.20'], ["54","null"], 3),
            (['54.84⇹85.20', '54.84⇹85.20', None, '85.20'], ["null"], 1),
            (['54.84⇹85.20', '54.84⇹85.20', None, '85.20'], ["none"], 1),
        for recordData, bkFilter, expectedNumberOfRecords in testMatrix:
            lod = [{"bk":bk} for bk in recordData]
            es_api.filterForBk(lod, bkFilter)
            self.assertEqual(len(lod), expectedNumberOfRecords, f"Tried to filter for {bkFilter} and expected {expectedNumberOfRecords} but filter left {len(lod)} in the list")

    def testTibkatReducingRecords(self):
        tests deduplication of the tibkat records if reduce parameter is set
            False: 400,
            True: 50
        for reduce in (True,False):
            with self.subTest(msg=f"Testing with reduce={reduce}", testParam=reduce):
                res=es_api.getEventSeries(name=name, reduce=reduce)
                self.assertIn("tibkat", res)
                if reduce:
                    should=not should
Test Result
ConferenceCorpus % scripts/test --venv -tn test_eventseries_api
No new changes in tests or corpus directories.
Starting test testGetEventSeries ... with debug=False ...
test testGetEventSeries ... with debug=False took   8.5 s
.Starting test testLookup ... with debug=False ...
test testLookup ... with debug=False took   0.0 s
.Starting test testTibkatReducingRecords ... with debug=False ...
test testTibkatReducingRecords ... with debug=False took   5.2 s
.Starting test test_MetadataMapping ... with debug=False ...
test test_MetadataMapping ... with debug=False took   0.0 s
.Starting test test_extractWikidataMapping ... with debug=False ...
test test_extractWikidataMapping ... with debug=False took   0.5 s
.Starting test test_filterForBk ... with debug=False ...
test test_filterForBk ... with debug=False took   0.0 s
.Starting test test_getEventSeriesBkFilter ... with debug=False ...
test test_getEventSeriesBkFilter ... with debug=False took   2.9 s
Ran 7 tests in 17.202s


Test first


There is scripts/test script that has runs the python unit tests from the test directory:


Usage: scripts/test [OPTIONS]
  -b, --background  Run tests in the background and log output.
  -d, --debug       Show environment for debugging.
  -g, --green       Run tests using the green test runner.
  -h, --help        Display this help message.
  -p, --python      Specify the Python interpreter to use.
  -tn, --test_name  Run only the specified test module.
  --venv        Use a virtual environment for testing.

  scripts/test --python python3.10 --background

Running a single test

Below is a call that runs a single test in a venv environment

scripts/test --venv -tn testPainScale
No new changes in tests or corpus directories.
Starting test testPainImages ... with debug=False ...
test testPainImages ... with debug=False took   0.7 s
Ran 1 test in 0.713s


Example Test result

Ran 161 tests in 1041.419s
FAILED (errors=18, skipped=8)

Continuous Integration

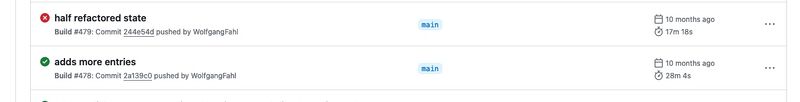

github workflows

We use github workflows for our CI with two workflow yaml files:

  • build.yml
  • upload-to-pypi.yml


The build workflow uses a matrix of python versions and operating systems. During the migration phase we only use Ubuntu and Python 3.10 to speed up the actions handling. In our projects actions list we can see wether our CI works or still fails:



Apache Server installation

To serve from an Apache Server we need to start the service (e.g. on reboot) and make it available via an apache configuration. We also have to make sure the service is available on the internet and findable by the DNS system.

DNS entry

My services are hoste via hosteurope where i can access my DNS entries via its KIS system

By adding cc2 as a cname for now points to Kisscreenshot2023-11-18.jpg

apache configuration

Our server is an Ubuntu 22.04 LTS machine. The configuration is at /etc/apache2/sites-available/conferencecorpus.conf

  • Line 9: `ServerName`
    • This sets the address for this virtual server. It's like telling the server, "Use this setting for the website named ''."
  • Lines 20-21: WebSockets Handling
    • These lines help redirect websocket requests for reactive interactions by NiceGUI.
  • Lines 30, 33, 36: `ProxyPassReverse / http://localhost:5005/`
    • This helps keep the website's links working correctly when using tools like NiceGUI.
    • It makes sure that any responses from the server seem like they are coming directly from the website, even though they're actually handled by a separate tool (NiceGUI) running in the background locally.
  • Log Directives: `ErrorLog` and `CustomLog`
    • These are for recording what happens on the server.
    • `ErrorLog` keeps track of any problems, while `CustomLog` records all visits and activities. This is important for fixing issues and understanding how people use the website.


<VirtualHost *:80 >
	# The ServerName directive sets the request scheme, hostname and port that
	# the server uses to identify itself. This is used when creating
	# redirection URLs. In the context of virtual hosts, the ServerName
	# specifies what hostname must appear in the request's Host: header to
	# match this virtual host. For the default virtual host (this file) this
	# value is not decisive as it is used as a last resort host regardless.
	# However, you must set it for any further virtual host explicitly.

	#DocumentRoot /var/www/html

	# Available loglevels: trace8, ..., trace1, debug, info, notice, warn,
	# error, crit, alert, emerg.
	# It is also possible to configure the loglevel for particular
	# modules, e.g.
	#LogLevel info ssl:warn

	ErrorLog ${APACHE_LOG_DIR}/cc_error.log
	CustomLog ${APACHE_LOG_DIR}/cc.log combined

	# For most configuration files from conf-available/, which are
	# enabled or disabled at a global level, it is possible to
	# include a line for only one particular virtual host. For example the
	# following line enables the CGI configuration for this host only
	# after it has been globally disabled with "a2disconf".
	#Include conf-available/serve-cgi-bin.conf
        RewriteEngine On
        RewriteCond %{HTTP:Upgrade} =websocket [NC]
        RewriteRule /(.*)           ws://localhost:5005/$1 [P,L]
        RewriteCond %{HTTP:Upgrade} !=websocket [NC]
        RewriteRule /(.*)           http://localhost:5005/$1 [P,L]

	# make local Conference Corpus webserver available
	ProxyPassReverse / http://localhost:5005/

enabling the website

sudo a2ensite conferencecorpus
Enabling site conferencecorpus.
To activate the new configuration, you need to run:
  systemctl reload apache2
# we do a complete restart for good measure
service apache2 restart

The server should now in principle accessible at but will responde with HTML Code 503 Service Unavailable until we start the webservice

crontab entry

We restart our servers on reboot and every night. You need to adapt your contrab entries to your username

crontab -l | tail -4
# run startup on reboot
@reboot /home/<user>/bin/startup --all
# and every early morning 02:30 h
30 02 * * * /home/<user>/bin/startup --all

startup script

The startup script manages Python services, with error handling (`error`) and usage info (`usage`). This example only shows the single service ConferenceCorpus - in our context we have lots of services that are started this way on reboot or demand.

  • Updates projects from Git (`update`) and manages logs (`prepare_logging`).
  • `start_python_service` kills existing instances before restarting.
  • Operates on command-line options, with ANSI color-coded output.


# WF 2023-02-25
# startup jobs for Conference Corpus

# ansi colors

# a colored message
color_msg() {
  local l_color="$1"
  local l_msg="$2"
  echo -e "${l_color}$l_msg${endColor}"

# error
error() {
  local l_msg="$1"
  color_msg $red "Error:" 1>&2
  color_msg $red "\t$l_msg" 1>&2
  exit 1

# show usage
usage() {
  echo "Usage: $0 [options]"
  echo "Options:"
  echo "-h  |--help:        Show this message"
  echo "--cc:               Start Conference Corpus"
  exit 1

# start the given python service
start_python_service() {
  local l_name=$1
  local l_giturl=$2
  local l_cmd=$3
  local l_cmd_proc="$4"
  local l_log=$(prepare_logging $l_name)
  update $l_name $l_giturl true
  background_service "$l_cmd" "$l_cmd_proc" $l_log
  log "log is at $l_log"

# background service
background_service() {
  local l_cmd="$1"
  local l_cmd_proc="$2"
  local l_log="$3"
  pgrep -fla "$l_cmd_proc"
  if [ $? -eq 0  ]
    pkill -f "$l_cmd_proc"
  nohup $l_cmd > "$l_log" 2>&1 &

# update the given python project
update() {
  local l_name=$1
  local l_giturl=$2
  local l_do_update=$3
  local l_srcroot=$HOME/source/python
  local l_service_root=$l_srcroot/$l_name
  if [ ! -d $l_srcroot ]
    mkdir -p $l_srcroot
  cd $l_srcroot
  if [ ! -d $l_service_root ]
    git clone $l_giturl $l_name
  cd $l_service_root
  if [ "$l_do_update" == "true" ]
    git pull
    python -m venv .venv
    source .venv/bin/activate
    pip install --upgrade pip

# prepare logging for the given service
prepare_logging() {
  local l_name=$1
  local l_logdir=/var/log/$l_name
  local l_log=$l_logdir/$l_name.log
  local l_idn=$(id -un)
  local l_idg=$(id -gn)
  if [ ! -d $l_logdir ]
    sudo mkdir -p $l_logdir
  sudo chown $l_idn.$l_idg $l_logdir
  sudo touch $l_log
  sudo chown $l_idn.$l_idg $l_log
  echo "$l_log"

# start Conference Corpus
start_conference_corpus() {
  start_python_service cc "ccServer --serve" "ccServer --serve"

cd $HOME
. .profile
if [ $# -lt 1 ]
  while [  "$1" != ""  ]
    case $option in


Usage: startup [options]
-h  |--help:        Show this message
--cc:               Start Conference Corpus
--all:              Start all services
