Graph Approaches for Software Engineering  Author
 Wolfgang Fahl Wolfgang Fahl info@bitplan.com
 Footer
 Applying the OpenSource Project SimpleGraph and it's modules to Software Engineering
 Subfooter
 sebis Oberseminar TUM
Contents
 1 ⌘⌘ Wolfgang Fahl
 2 ⌘⌘ Touchable Software Engineering
 3 ⌘⌘ Graph Kernels for Model Driven Software Engineering
 4 ⌘⌘ Use SimpleGraph for the 5 Steps
 5 ⌘⌘ Step 1: Decide how the model should be encoded into a graph
 6 ⌘⌘ Step 2: Translate each of the models into a labeled graph
 7 ⌘⌘ Step 3: Select the graph kernel algorithm to be used
 8 ⌘⌘ Step 4: Load all the graphs and compute the graph kernel
 9 ⌘⌘ Step 5: Exploit the information in the kernel matrix
 10 ⌘⌘ What is SimpleGraph?
 11 ⌘⌘ What is Apache TinkerPop/Gremlin?
 12 ⌘⌘ SimpleGraph Dragtop
 13 ⌘⌘ Example: The 5 Steps in SimpleGraph
 14 ⌘⌘ Step 1: Decide how the model should be encoded into a graph
 15 ⌘⌘ Step 2: Translate each of the models into a labeled graph
 16 ⌘⌘ Step 3: Select the graph kernel algorithm to be used
 17 ⌘⌘ Step 4: Load all the graphs and compute the graph kernel
 18 ⌘⌘ Step 5: Exploit the information in the kernel matrix
 19 ⌘⌘ How to benefit and participate
 20 ⌘⌘ Ideas for SimpleGraph future Progress
 21 ⌘⌘ Questions/Discussion
⌘⌘ Wolfgang Fahl

Peugeot Ion
Giant Explore
⌘⌘ Touchable Software Engineering
⌘⌘ The World as a Graph
If the world is represented as a Graph it would be nice to have a Simple Graph Navigation Language
see SMWCon Fall 2018

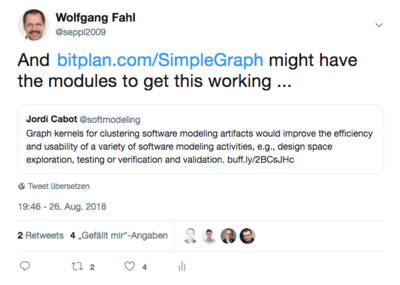

⌘⌘ Why I am here
⌘⌘ Prehistory
see also PreHistory (clickable)
⌘⌘ Graph Kernels for Model Driven Software Engineering
5 Steps
 Decide how the model should be encoded into a graph
 Translate each of the models into a labeled graph
 Select the graph kernel algorithm to be used
 Load all the graphs and compute the graph kernel
 Exploit the information in the kernel matrix
⌘⌘ Use SimpleGraph for the 5 Steps
⌘⌘ Step 1: Decide how the model should be encoded into a graph
Each SimpleGraph Module transforms data from some API to a Graph representation. The transformation is usually as "straightforward" or "natural" as possible.
⌘⌘ Step 2: Translate each of the models into a labeled graph
Each SimpleGraph Module uses the following steps to translate from an API to the graph
 connect()
 moveTo()
⌘⌘ Step 3: Select the graph kernel algorithm to be used
SimpleGraph is based on Apache Gremlin/Tinkerpop so all the algorithm and libraries around this graph environment are directly available. If a different graph kernel and or algorithm is needed than the graph can be translated / imported via standard graph import/export formats and or import/export adapters and utilities.BITPlan e.g. often uses Semantic MediaWiki as a suitable environment.
⌘⌘ Step 4: Load all the graphs and compute the graph kernel
Simplegraph is based on the Hub&Spoke approach. Any combination of modules/API can be applied. Currently there are some 20 different modules to choose from.
⌘⌘ Step 5: Exploit the information in the kernel matrix
There are two modes for exploiting the information:
 OLAP  Online Analytical Processing / Graph Query
 OLTP  Online Transaction Processing / Graph Traversal
⌘⌘ What is SimpleGraph?

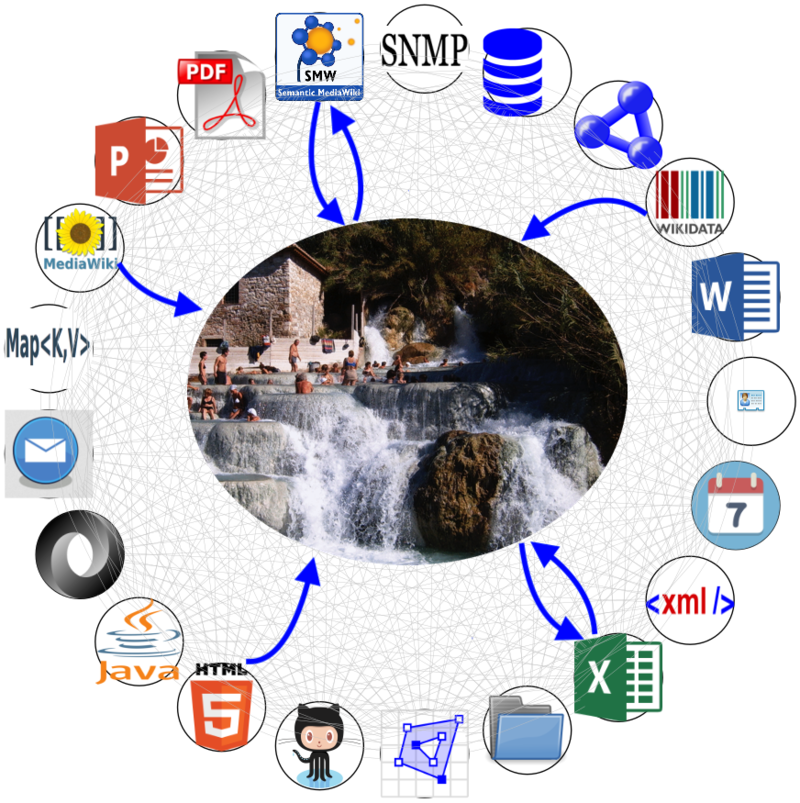

Simplegraph allows to work with "graphized" information source from a combination of APIs that are made available as modules.
Module  System wrapped  API exposed  Description

FileSystem  FileSystem  java.io.File  makes your FileSystem accessible via the Java FileSystem API
GitHub  GitHub  GitHub GraphQL Api v4  makes GitHub content accessible to Graph processing.
Java  Java  javaparser  makes Java code parse results accessible to Graph processing.
EMail access for rfc822 and MIME formatted Mailbox files (e.g. Thunderbird)  makes Mail data available via Apache Mime4J
SMW  SMW  SemanticMedia Wiki API  makes Semantic MediaWiki accessible via the SMW API
XML  XML  org.w3c.dom  makes XML dom parse results accessible to Graph processing.
⌘⌘ What is Apache TinkerPop/Gremlin?
Apache Tinkerpop is an Open Source project. Gremlin is the GraphTraversal Language for it.
 OLTP  Online Transaction Processing  Navigation and Processing
 OLAP  Online Analytical Processing  Queries
  Example  Ancestors of King James
⌘⌘ SimpleGraph Dragtop
The Dragtop Open Source Software makes the SimpleGraph modules available for direct access from your Desktop. By simple drag and drop of the input onto the dragtop and then dropping a "tool" onto the dragtop you can combine the module functionality as you see fit.
⌘⌘ Example: The 5 Steps in SimpleGraph
⌘⌘ Step 1: Decide how the model should be encoded into a graph
 .java Source Files: FileSystem module
 Java Classes: JavaSystem
 .class Files: Filesystem module (Bytecode parser?)
⌘⌘ Step 2: Translate each of the models into a labeled graph
⌘⌘ Step 3: Select the graph kernel algorithm to be used
FileSystem fs=new FileSystem();
FileNode start = (FileNode) fs.connect("").moveTo(aroot.getPath());
start.recursiveOut("files",Integer.MAX_VALUE);
List<Vertex> javaFileNodes=start.g().V().has("ext", "java").toList();
List<Vertex> classFileNodes=start.g().V().has("ext", "class").toList()
⌘⌘ Step 4: Load all the graphs and compute the graph kernel
⌘⌘ Step 5: Exploit the information in the kernel matrix
 Visualize
 Store
 Mix and match with other sources
⌘⌘ How to benefit and participate
 Stay in touch with Wolfgang Fahl
 Ask StackOverFlow questions on SimpleGraph
 Participate in the GitHub SimpleGraph Open Source Project
 Join the SimpleGraph Mailinglist
 Collaborate on Projects with BITPlan
 Write papers related to SimpleGraph
⌘⌘ Ideas for SimpleGraph future Progress
 more SoftwareEngineering related modules e.g. for Modelling,Requirements Engineering
 more Visualization options e.g. like/with prefuse
 Visualized Editor e.g. like/with blockly
 better integration with other programming languages
